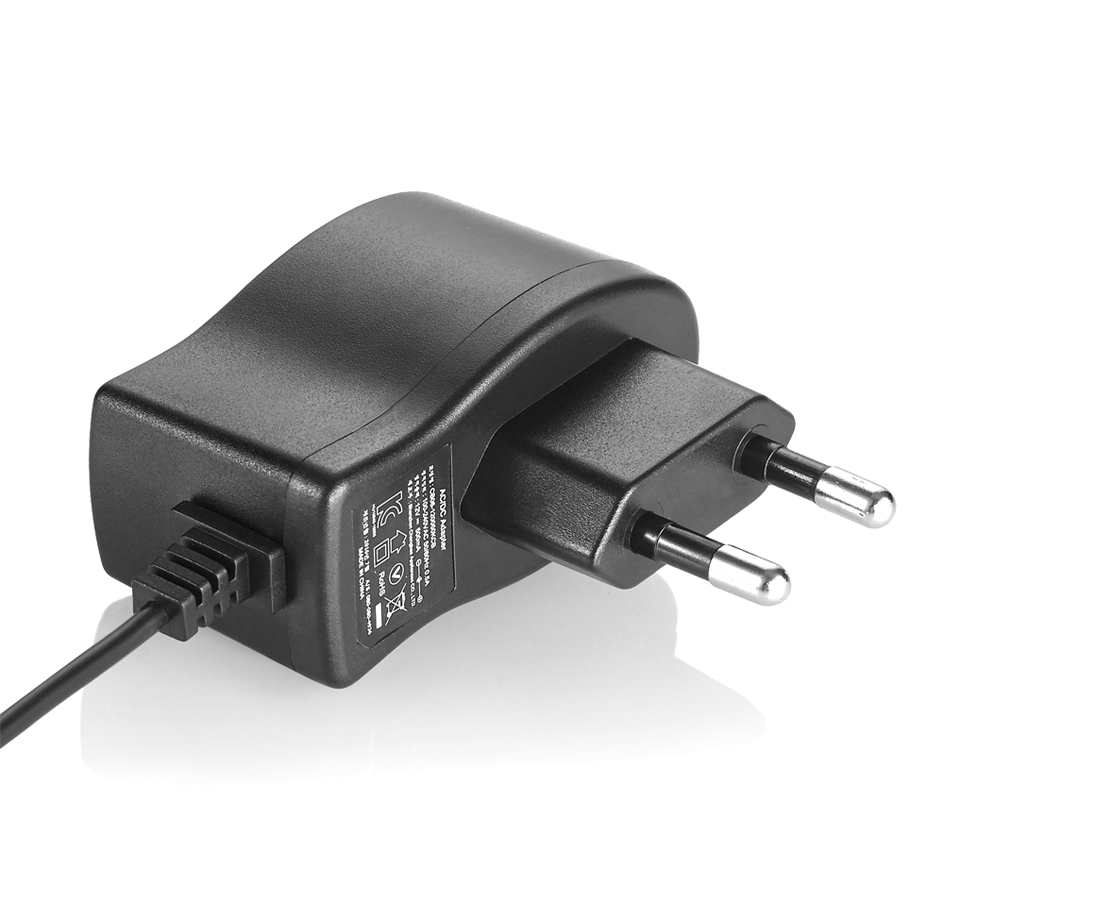

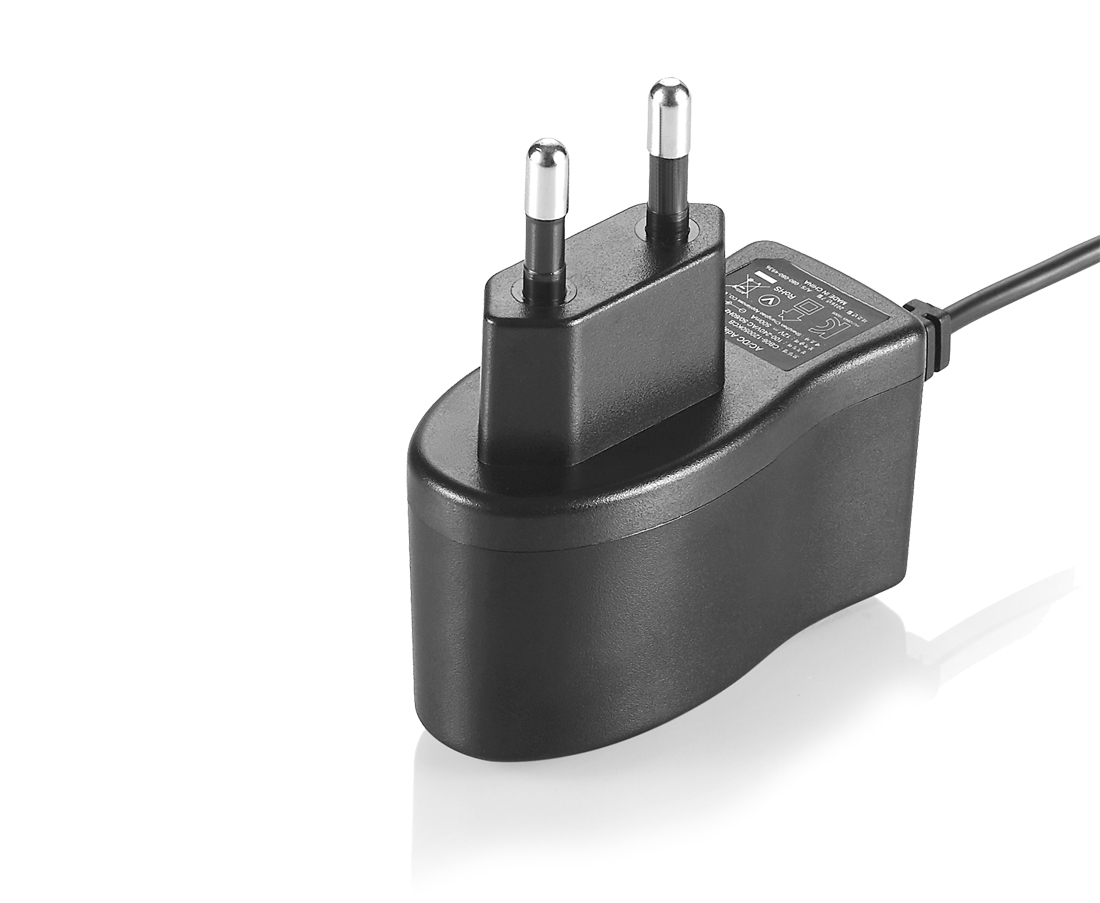

12W EU Power Supplies, Horizontal Type
  • Product Details
  • Product Data Sheet
  • Contact Us
    Model No.
    WP-XXXYYYY

    (Note: XXX means 3 digits from 050 to 240, output voltage in Vdc when divided by 10, eg: 240=24Vdc.YYYY means 3 digits from 0010 to 2500, output current in mA. eg: 0800=800mA.)




    Part No.
    		EN-1202



    Input
    		100-240V AC, 47-63Hz



    Output voltage range
    		3.0V to 28V



    Output current range 0.1A to 2.1A



    Certificate
    		 TUV-GS, CE,



    Safety standard

    UL60950, UL1310, UL60065

    IEC60950-1, IEC60335-1, IEC60335-2-29, IEC60065

    EN60950-1, EN60335-1, EN60335-2-29, EN60065

    AS/NZS60950, AS/NZ60335

    K60950-1, K60335-1, K60335-2-29

    J60335-1, J60335-2-29

    GB4943 , GB4706.1




    EMC

    Part 15B

    EN55032, EN55035

    AS/NZS CISPR32, AS/NZS CISPR35

    KN55032, KN55035

    J55032, J55035

    GB9254




    Green products
    		Complied with REACH and RoHS



    Features

    Wall-mounted fixed input plug

    Class I & II models available

    Low leakage current<3.5mA

    No load power consumption <0.21W

    Energy efficiency Level VI

    High flame-resistance




    Reliability

    Mean Time Between Failure > 50000H

    Burn-In test (4H)

    Chroma ATE test

    Drop test

    Salt spray test




    Protection

    Over voltage protection

    Over current  protection

    Short circuit protection

    Over temperature protection




    Warranty

    		2 years



    Dimension
    		L.67mm x W.28mm x H.74mm



    Weight
    		92g



    Application

    Suitable for  I.T.E. products

    Including Vacuum cleaner, shaver，air purifier, essential oil diffuser etc.
