Model No.
|
|
WP-XXXYYYY
(Note: XXX means 3 digits from 050 to 240, output voltage in Vdc when divided by 10, eg: 240=24Vdc.YYYY means 3 digits from 0010 to 2500, output current in mA. eg: 0800=800mA.)
|
|
|
|
|
Part No.
|
|
CNX0001
|
|
|
|
|
Input
|
|
100-240V AC, 47-63Hz
|
|
|
|
|
Output voltage range
|
|
5.0V to 2.4V
|
|
|
|
|
Output current range
|
|
0.1A to 2.5A
|
|
|
|
|
Certificate
|
|
UL, cUL, FCC, TUV-GS, TUV-BS, CE, RCM, PSE, KC
|
|
|
|
|
Safety standard
|
|
UL60950, UL1310, UL60065
IEC60950-1, IEC60335-1, IEC60335-2-29, IEC60065
EN60950-1, EN60335-1, EN60335-2-29, EN60065
AS/NZS60950, AS/NZ60335
K60950-1, K60335-1, K60335-2-29
J60335-1, J60335-2-29
GB4943 , GB4706.1
|
|
|
|
|
EMC
|
|
Part 15B
EN55032, EN55035
AS/NZS CISPR32, AS/NZS CISPR35
KN55032, KN55035
J55032, J55035
GB9254
|
|
|
|
|
Green products
|
|
Complied with REACH and RoHS
|
|
|
|
|
Features
|
|

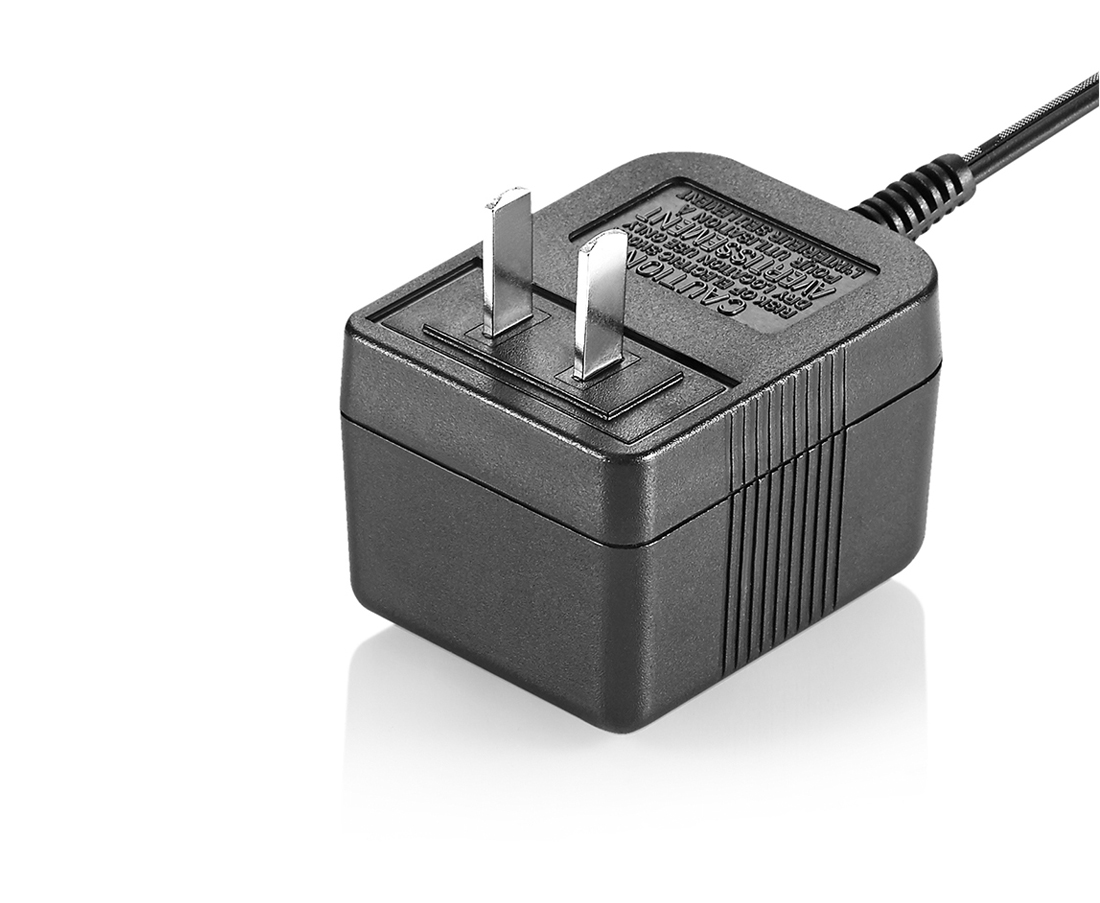

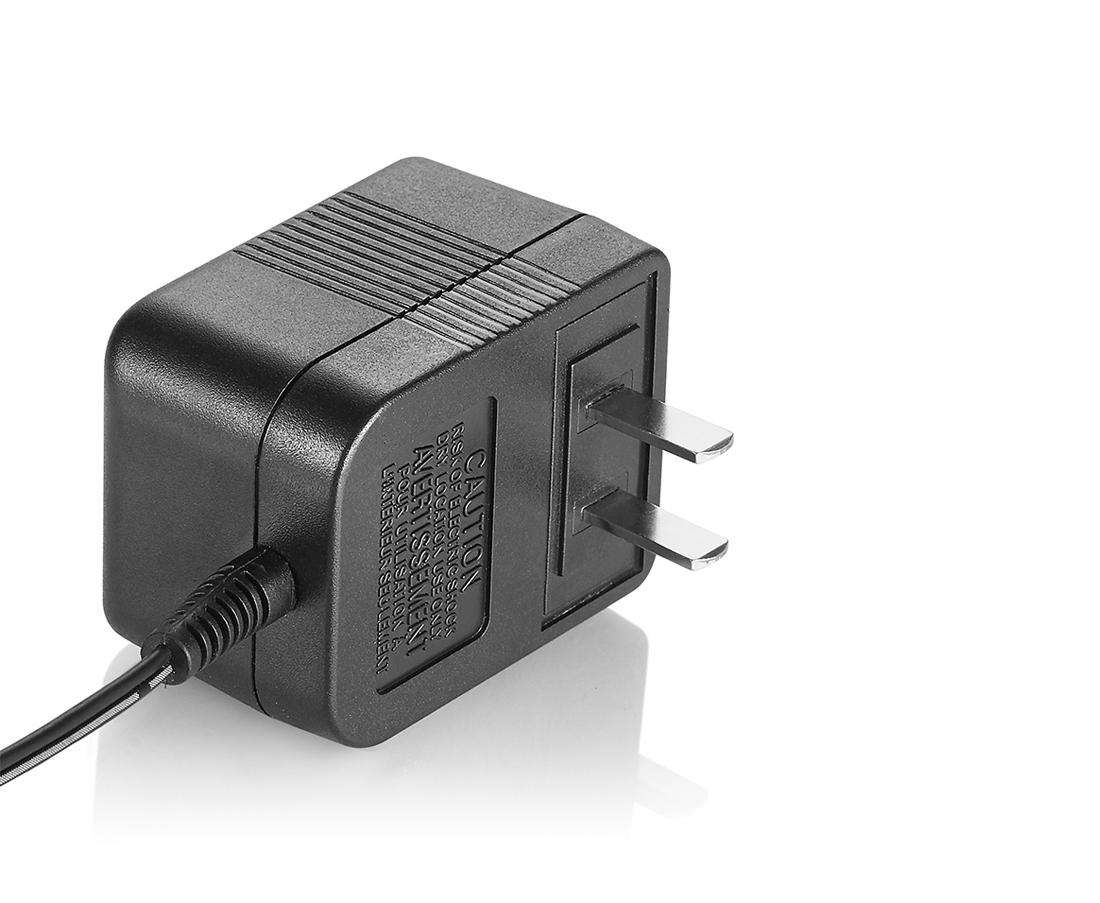

Wall-mounted fixed input plug
Class I & II models available
Low leakage current<3.5mA
No load power consumption <0.21W
Energy efficiency Level VI
High flame-resistance
|
|
|
|
Reliability
|
|
Mean Time Between Failure > 50000H
Burn-In test (4H)
Chroma ATE test
Drop test
Salt spray test
|
|
|
|
Protection
|
|
Over voltage protection
Over current protection
Short circuit protection
Over temperature protection
|
|
|
|
Warranty
|
|
2 years
|
|
|
|
Dimension
|
|
L.62mm x W.40mm x H.64mm
|
|
|
|
Weight
|
|
90g
|
|
|
|
Application
|
|
Suitable for I.T.E. products
Including Vacuum cleaner, shaver，air purifier, essential oil diffuser etc.
|
